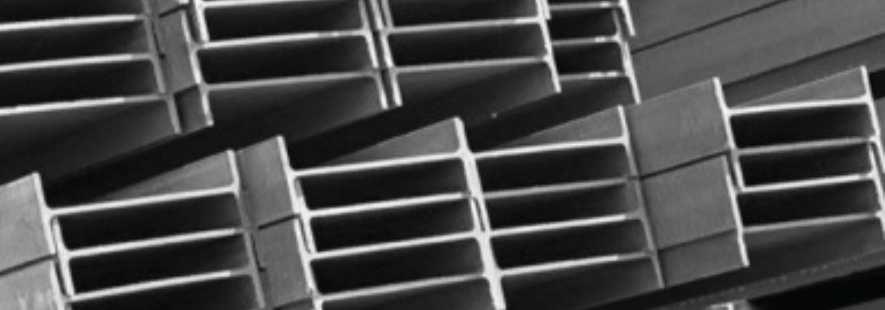

Universal Beams & Narrow Parallel Beams
At Shri Lakshmi Steel (SLSS), we offer high-quality Universal Beams and Narrow Parallel Beams designed for superior strength, load-bearing capacity, and structural efficiency. These beams provide enhanced stability while maintaining a lighter sectional weight, making them a cost-effective choice for complex structural designs.
Why Choose SLSS for Universal & Narrow Parallel Beams?
- High Strength & Efficiency – Engineered for superior axial and load-bearing performance
- Lightweight Yet Durable – Lower sectional weight ensures strength without excess material
- Versatile Applications– Ideal for infrastructure, commercial, and industrial projects
- Economical & Cost-Effective – Reduced weight results in material savings without compromising strength
- Authorized Distributor – Supplying beams from SAIL and other trusted manufacturers
Applications of Universal & Narrow Parallel Beams
- Infrastructure & Construction – Airports, highways, metro rail projects, malls
- Industrial & Energy Sectors – Refineries, power plants, oil & gas projects
- High-Rise & Commercial Buildings – Flyovers, bridges, and large-scale structures
Specifications & Standards
- Manufactured as per ISI Specification – IS:12778 / DIN 1025
- Custom Sizes & ThicknessesAvailable for diverse project requirements
As a leading supplier of Universal and Narrow Parallel Beams, SLSS is committed to providing top-tier quality, competitive pricing, and reliable supply to meet the evolving demands of construction and engineering industries.
Contact us today for the best solutions in Universal and Narrow Parallel Beams!
Technical Specifications
UNIVERSAL BEAMS AND NARROW PARALLEL BEAMS
AAS PER IS 12778 / (DIN 1025)
| Description | Sectional Weight |
Total Depth |
Flange Width |
Thickness Of Web |
Thickness Of Flange |
Root Radius |
Area Of Section |
Moment Of Inertia | Sectional Modulus | Radius Of Gyyration | |||
| X Axis | Y Axis |
X Axis |
Y Axis | X Axis | Y Axis |
||||||||
| Beams | w | H | b | tw | tf | r | A | Ixx | Iyy | Zxx | Zyy | rxx | ryy |
| Kg/m | mm | mm | mm | mm | mm | cm2 | cm4 | cm4 | cm3 | cm3 | cm | cm | |
| UB 203*133*25 |
25.1 | 203.2 | 133.2 | 5.7 | 7.8 | 7.6 | 31.97 | 2340 | 307.6 | 230.3 | 46.2 | 8.56 | 3.1 |
| UB 254*146*37 |
37 | 256 | 146.4 | 6.3 | 10.9 | 7.6 | 47.17 | 5537 | 570.6 | 432.6 | 78 | 10.83 | 3.48 |
| UB 305*165*46 |
46.1 | 306.6 | 165.7 | 6.7 | 11.8 | 8.9 | 58.75 | 9899 | 895.7 | 645.7 | 108 | 12.98 | 3.9 |
| UB 356*171*51 |
51 | 355 | 171.5 | 7.4 | 11.5 | 10.2 | 64.91 | 14140 | 968.3 | 796.4 | 112.9 | 14.76 | 3.86 |
| UB 406*178*60 |
60.1 | 406.4 | 177.9 | 7.9 | 12.8 | 10.2 | 76.52 | 21600 | 1203 | 1063 | 135 | 16.8 | 3.97 |
| UB 457*152*74 |
74.3 | 457 | 190.4 | 9 | 14.5 | 10.2 | 94.63 | 33320 | 1671 | 1458 | 175.5 | 18.76 | 3.33 |
| NPB 450*190*77.6 |
77.6 | 450 | 190 | 9.4 | 14.6 | 21 | 98.8 | 33743 | 1675.9 | 1499.7 | 176.4 | 18.48 | 4.12 |
| NPB 500*200*90.7 |
90.7 | 500 | 200 | 10.2 | 16 | 21 | 115.5 | 48199 | 2141.7 | 1927.9 | 241.2 | 20.43 | 4.31 |
| NPB 600*220*122.4 |
122.4 | 600 | 200 | 12 | 19 | 24 | 156 | 92083 | 3387.3 | 3069.4 | 307.9 | 24.3 | 4.66 |
